Product Description
The Sound
Building on our highly revered Porsche turbo range, we have incorporated many of the same design features into our Carrera turbo range, 1D CLR X pipe for that incendiary howl at higher rpm, harmonically tuned silencers, and ultra-thin Inconel 625 for that “Unique to Kline” sound. The Kline Carrera Turbo system also incorporates a valvetronic design, allowing the car to be run stealthily on valve closed, while attaining an unhindered raw scream, and optimum performance when the valves are opened.

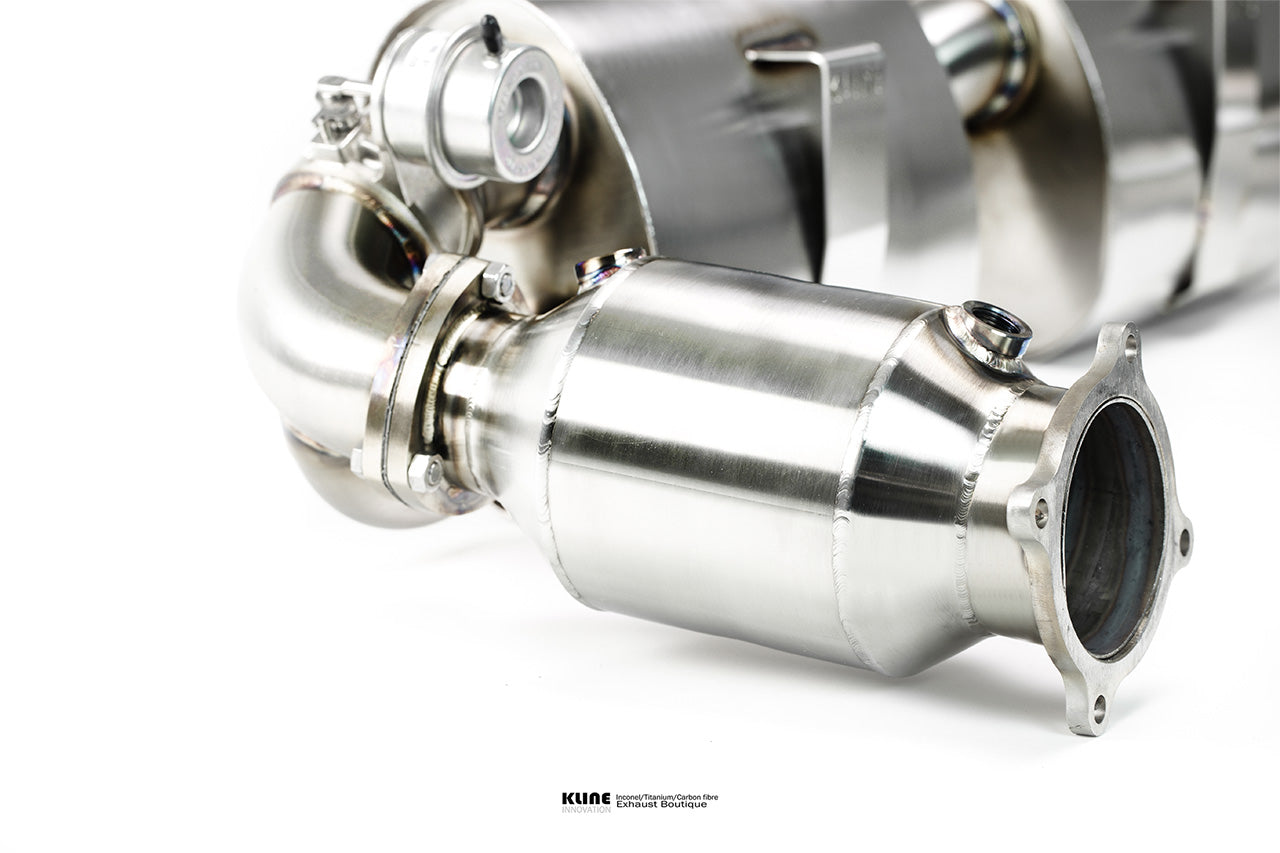

Available in Decat for optimum sound and performance, or a choice of 100 or 200 cell high flow sports cats. The cats section is modular, allowing the cats to be swapped with decat very rapidly, depending on intended use. Performance gains for decat system, 35hp and 41nm @6000 rpm. 20 and 16hp for 100 and 200 cell respectively.
Kline headers, manufactured from 0.9mm wall Inconel 625, featuring a smooth equal length design, and internally laser welded Inconel collector, result in faster, and more efficient turbo spool, increasing torque, and power across the curve, and a largest increase of 20nm and 15hp at 6000rpm.
Full F1 grade Inconel 625 construction makes for the lightest weight, and most durable manifolds on the market, by a factor of 2.
THE SPECIFICS
Cross Sections
Decat cross section 70mm, 63.5mm x pipe. 45mm valve closed transit, 63.5 mm valve open transit.
Catalysts come in a variety of cross sections from 108mm OD to 127mm OD. Headers, 41mm primaries, chosen for across the graph torque gains
Materials
Available in premium grade Inconel 625 superally, full valvetronic system 10.5kg
Available in 304 grade stainless steel, full valvetronic system 19kg.
Manifolds (Inconel 625), 1.5kg each.
